ZXLD1100
PIN DESCRIPTION
PIN NO.
1
2
3
4
5
6
NAME
LX
GND
FB
EN
VSENSE
V IN
DESCRIPTION
Output of NDMOS switch
Ground (0V)
Feedback pin for current control loop (connect resistor R1
from this pin to GND for output current I=100mV/ R1)
Enable input (active high to turn on device)
Also used to adjust output current by PWM signal.
Connect to V in for permanent operation.
Output voltage sense (used for open circuit protection).
Connect to GND if not required.
Input voltage (2.5V to 5.5V). Decouple with capacitor close
to device.

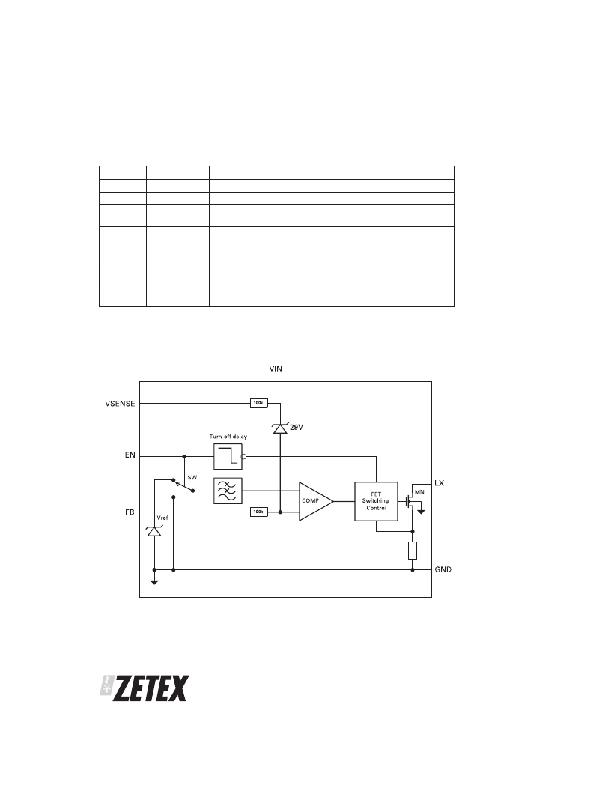

BLOCK DIAGRAM
ISSUE 4 - JULY 2004
SEMICONDUCTORS
4
